Chapter 4 · Connect to Home Assistant5 min

Control a Light

Toggle a smart light from an LVGL button - with state feedback.

The pattern - same for any actuator

User taps widget

on_click / on_change

homeassistant.service

calls HA service

HA state → widget

sync back via binary_sensor

Design a switch or button in the designer

Place a Switch widget on your canvas. You'll find it under INPUT in the left widget panel. The switch is ideal for on/off controls - it has a built-in checked/unchecked state that maps perfectly to a light.

LVGL Designer canvas showing a switch widget selected in the element tree

The switch widget in the canvas (the green toggle). The right panel shows its properties - note the id field. You'll reference this ID in your YAML to wire up the HA connection.

yamlYour switch widget (from the designer)

# Your LVGL switch widget (from the designer)
# The important parts: id + on_change trigger

lvgl:
  pages:
    - id: canvas_2
      bg_color: 0xFFFFFF
      pad_all: 0
      widgets:
        - switch:
            id: light_sw
            x: 118
            y: 100
            width: 85
            height: 40
            state:
              checked: true
            bg_color: 0x4B5563
            bg_opa: 0%
            indicator:
              bg_color: 0x2623E7
              bg_opa: 0%
            knob:
              bg_color: 0xFFFFFF
              border_color: 0x9CA3AF
              border_width: 1

Find your light's entity ID

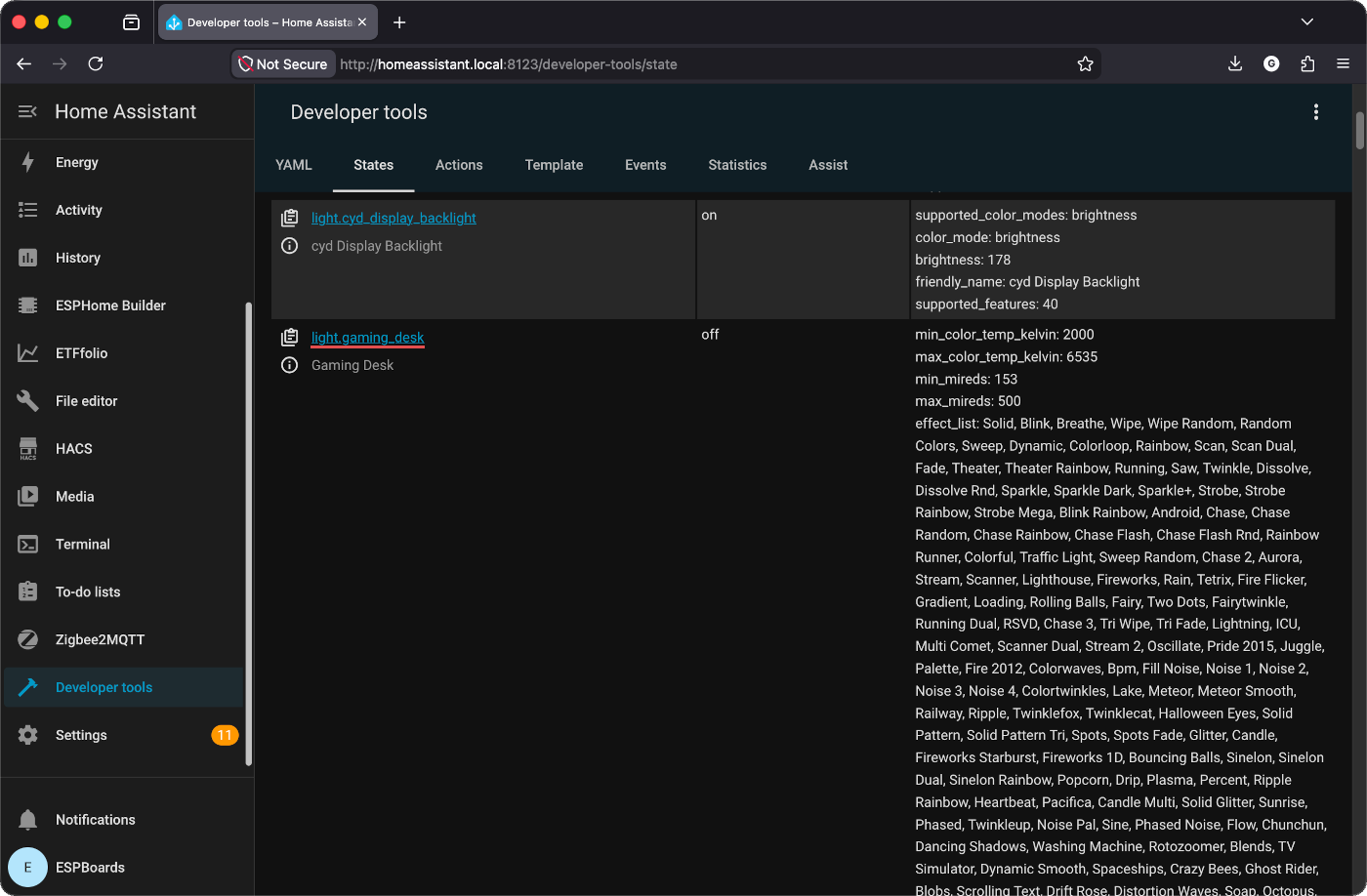

Same as the sensor page: Developer Tools → States in HA, search for your light. The entity ID looks like light.living_room.

Wire up the two-way connection

This is a two-way connection - not just "tap → toggle." You also need the light's state to sync back to the switch so it stays in sync when someone uses the HA app, voice, or another control.

LVGL Switch

on_change →← on_state

HA Light

Part 1 - Display → Home Assistant

Add on_change to your switch widget. When the user taps it, ESPHome calls light.toggle in Home Assistant.

yamlSwitch with on_change → HA

# PART 1: User taps switch → toggle the HA light
# Add on_change to your switch widget inside the lvgl: block

lvgl:
  pages:
    - id: canvas_2
      bg_color: 0xFFFFFF
      pad_all: 0
      widgets:
        - switch:
            id: light_sw
            x: 118
            y: 100
            width: 85
            height: 40
            state:
              checked: true
            bg_color: 0x4B5563
            bg_opa: 0%
            indicator:
              bg_color: 0x2623E7
              bg_opa: 0%
            knob:
              bg_color: 0xFFFFFF
              border_color: 0x9CA3AF
              border_width: 1
            on_change:
              then:
                - homeassistant.service:
                    service: light.toggle
                    data:
                      entity_id: light.living_room

Part 2 - Home Assistant → Display

Add this binary_sensor: block at root level (same level as esphome:). It subscribes to the light's on/off state and keeps the LVGL switch in sync - so when someone toggles the light from the HA app, voice assistant, or another switch, your display updates too.

yamlSync HA state back to switch

# PART 2: HA light changes → sync the switch
# Add this at root level (same level as esphome: / wifi:)

binary_sensor:
  - platform: homeassistant
    id: ha_light_state
    entity_id: light.living_room
    on_state:
      then:
        - if:
            condition:
              binary_sensor.is_on: ha_light_state
            then:
              - lvgl.widget.update:
                  id: light_sw
                  state:
                    checked: true
            else:
              - lvgl.widget.update:
                  id: light_sw
                  state:
                    checked: false

on_changeUser taps the switch → calls light.toggle in HA

binary_sensorSubscribes to the light's on/off state from HA

on_stateHA light changes → updates the LVGL switch's checked state

Required: you must enable "Allow the device to perform Home Assistant actions" in the ESPHome integration settings (Settings → Devices & Services → ESPHome → ⚙ Configure). Without this, homeassistant.service calls silently do nothing. See step 4 on the hub page →

The on_change trigger goes on the LVGL widget inside the lvgl: block. The binary_sensor: block goes at root level. They're separate - one sends commands, the other receives state.

Using a button instead of a switch?

A button uses on_click instead of on_change. It doesn't have a checked state, so there's nothing to sync back - simpler but no visual feedback.

yamlButton variant

# Alternative: use a button instead of a switch
# Same concept - on_click instead of on_change

lvgl:
  pages:
    - id: main_page
      widgets:
        - button:
            id: light_btn
            align: CENTER
            width: 120
            height: 50
            widgets:
              - label:
                  text: "Toggle Light"
                  align: CENTER
            on_click:
              then:
                - homeassistant.service:
                    service: light.toggle
                    data:
                      entity_id: light.living_room

Bonus: change label color based on light state

Add a status label next to the switch. Update its text and color when the light changes:

yamlColor feedback

# Bonus: change the switch/button color based on light state

binary_sensor:
  - platform: homeassistant
    id: ha_light_state
    entity_id: light.living_room
    on_state:
      then:
        - if:
            condition:
              binary_sensor.is_on: ha_light_state
            then:
              - lvgl.widget.update:
                  id: light_sw
                  state:
                    checked: true
              - lvgl.widget.update:
                  id: status_lbl
                  text_color: 0x10B981
              - lvgl.label.update:
                  id: status_lbl
                  text: "ON"
            else:
              - lvgl.widget.update:
                  id: light_sw
                  state:
                    checked: false
              - lvgl.widget.update:
                  id: status_lbl
                  text_color: 0x6B7280
              - lvgl.label.update:
                  id: status_lbl
                  text: "OFF"

Flash and tap

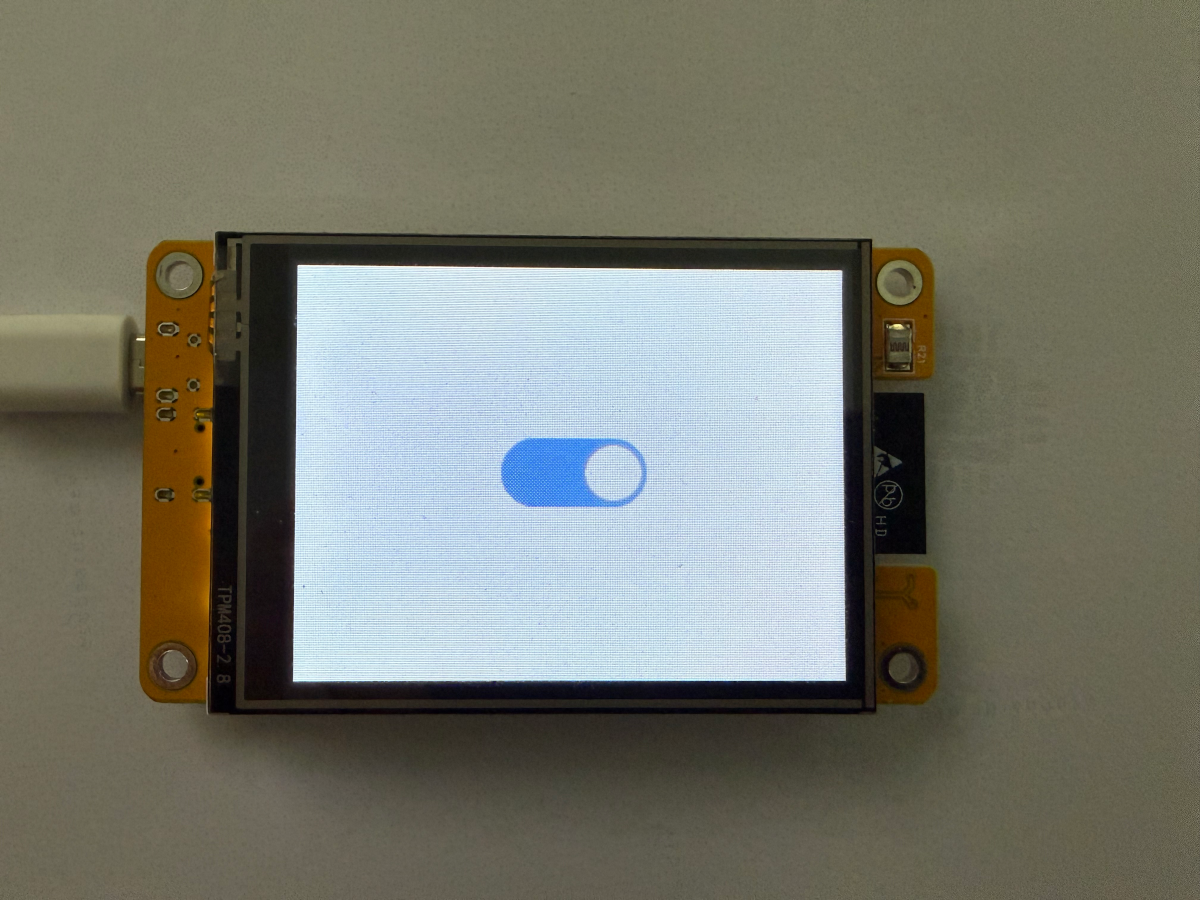

Flash OTA. Tap the switch on your display - the light should toggle. Turn the light off from the HA app - the switch on your display should update too.

[D][lvgl:switch]: on_change fired

[D][homeassistant.service]: light.toggle

entity_id: light.living_room

[I][binary_sensor]: light.living_room → ON

[D][lvgl]: switch checked: true

Checkpoint - Does tapping the switch toggle the light - and does the switch update when you control the light from elsewhere?

If both directions work - you've got full two-way control. The same pattern works for any HA service: fans, covers, media players.
